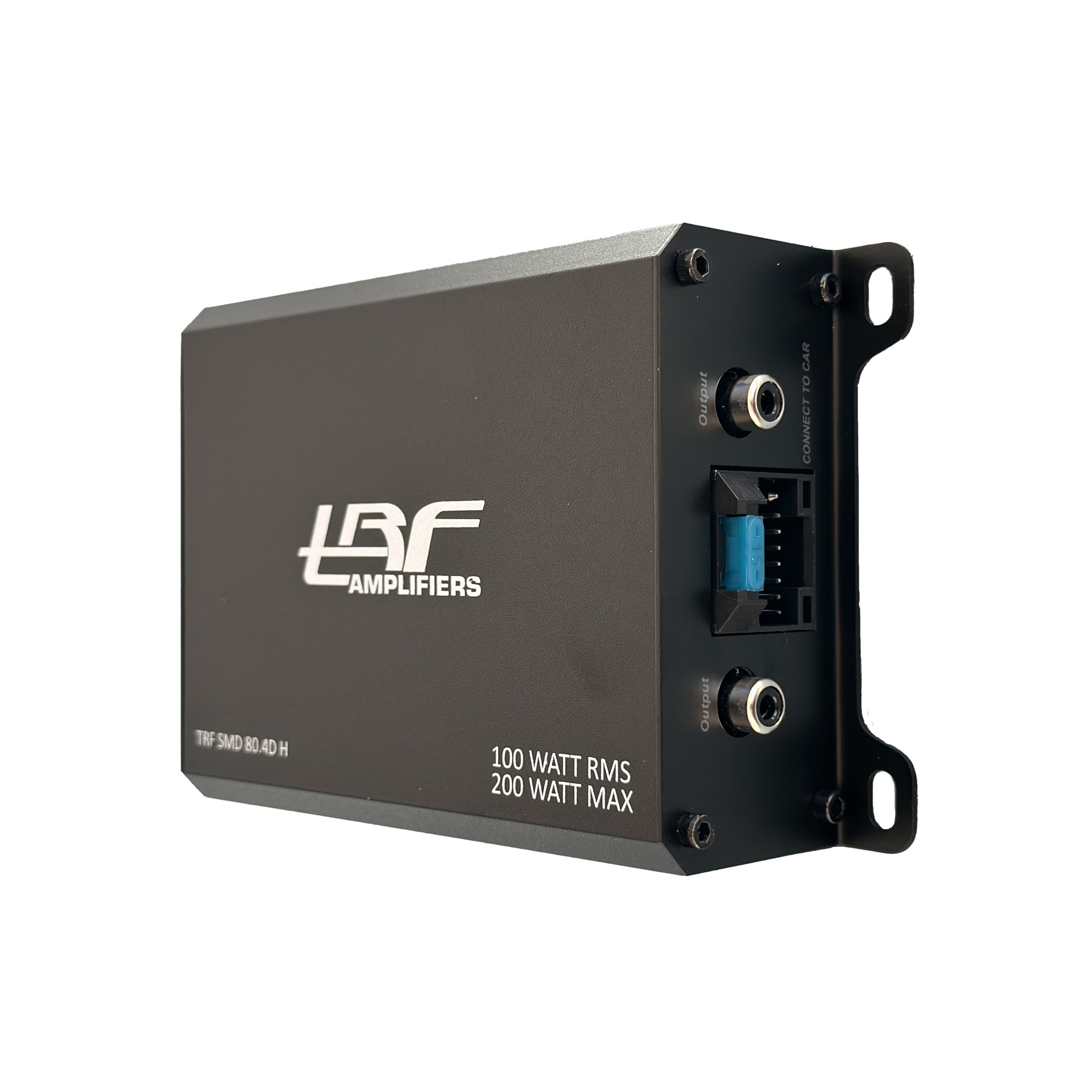

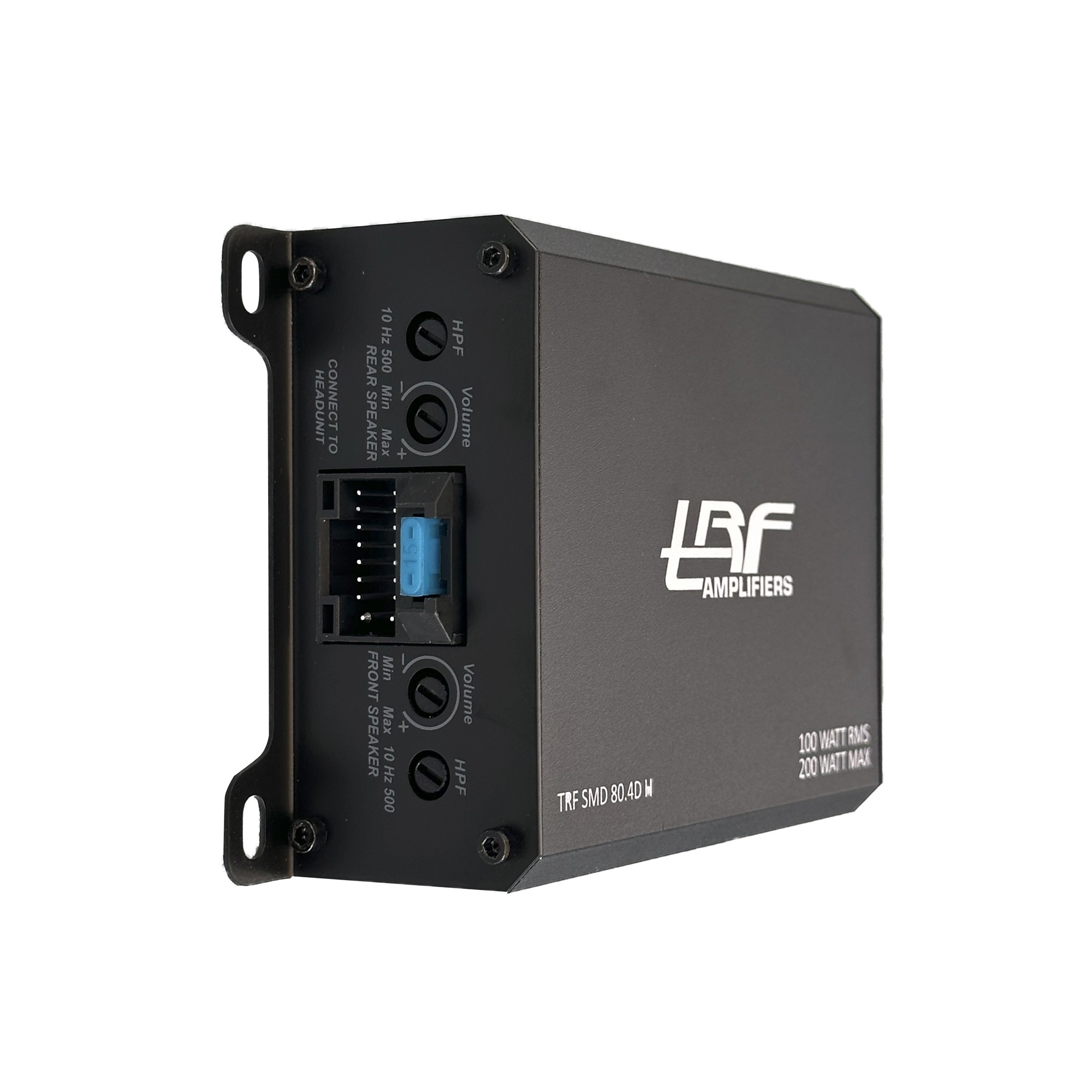

TRF SMD 80.4D H
100Watt RMS
POWER RMS 4ohm 18W X4 THD 2%
POWER RMS 4ohm 25W X4 THD 20%
200Watt MAX
POWER MAX 4ohm 36W X4 THD 2%
POWER MAX 4ohm 50W X4 THD 20%
SIGNAL TO NOISE:91dB
INPUT SENSITIVITY:0.2v to 6v
CROSSOVER:12db oct/slope
4 channel operation
4/3/2 channel operation
Selectable FULL/HPF crossovers CH1/2
variable HI pass filter:10Hz to 500HZ
Selectable FULL/HPFcrossovers CH3/4
variable HI pass filter:10Hz to 500HZ

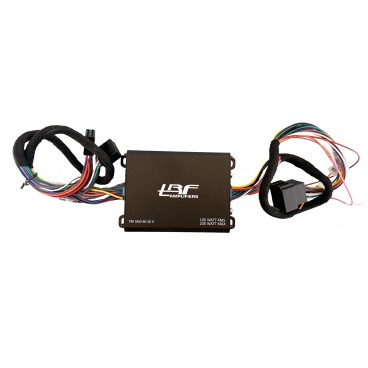

power & speaker : ISO CABLE
FUSE : 15 AMPER
LED power (green) and protect (red) indicator lights
Tested voltage & THD: 14,4v &Less than 2% AND 20%THD
Working voltage :8.5v to 15v
Dimension : 120x95x43mm
